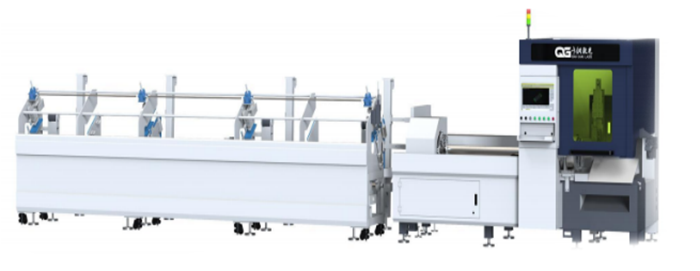

Laser Tube Cutting Machine Equipment

G90K fully automatic Loading

China QianGang Laser is a highly innovative laser equipment factory. Model G90K fully automatic beveling Laser Tube Cutting Machine Equipment, high efficiency, high quality, high reliability, bring users high value report, can be connected with automated production line production, help maximize production efficiency.

    Contact us
    product details

    Product Detail

    We are a manufacturer with expertise in manufacturing laser tube cutting machines. The main production of high efficiency full three dimensional five-axis multi-functional laser tube cutting machine, automatic laser tube cutting machine and bevel laser tube cutting machine.We can tailor the laser to your needs. Our G90K fully automatic beveling laser tube cutting machine is a common application in industries such as hardware furniture,industrial production, auto parts,mobile phone holders, medical devices and so on.

    Product introduction

    The G90k fully automatic beveling laser pipe cutting machine is designed for cutting various 45-degree pipes, with a laser power range of 1500watts to 3000 watts. To maintain stability, increase load-bearing capacity and enhance impact resistance, the automatic loading and unloading platform boosts productivity and reduces labor costs. The laser cutting range is approximately 1500to3000.
    封面图 拷贝

    Features

    1. The acceleration reaches 1.6G, and the efficiency is 5-6 times of average pipe cutting machine；
    2.The standard height adjuster can easy handle the cutting deformation of pipes：
    3.The head and tail materials are automatically separated from the fnished products to reduce the manual sorting process：
    4.Exclusive customized operating system，standard nesting software and flying cutting function.

    Application

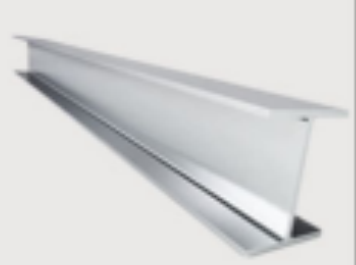

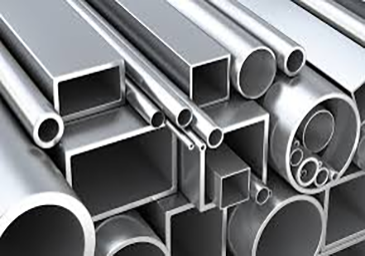

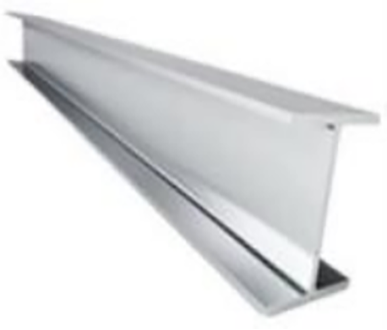

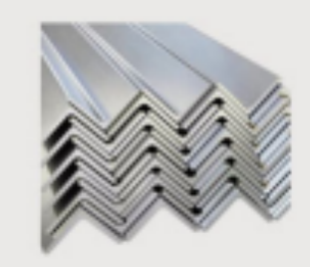

    This G90K fully automatic beveling Laser Tube Cutting Machine Equipment can hardware accessories, hardware furniture, bathroom, medical equipment, sports equipment, automobile production, building decoration, electrical equipment, elevator equipment and other major fields of metal pipe processing.
    • 图片2
    • 图片3
    • 图片4
    • 图片5

    Parameters

    Model

    G90K

    Laser Power (W）

    1500/2000/3000

    Cutting range (MM)

    Circumference:10-90

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6500

    Machine size (MM)

    L*W*H:8408*1650*2100

    Body + Rack size (MM)

    Semi-automatic(L*W*H):9300*1900*1950

    Machine weight（kg）

    ≈2.5

    Acceleration(G)

    ≈1.6

    Tailings  length(MM)

    ≈40

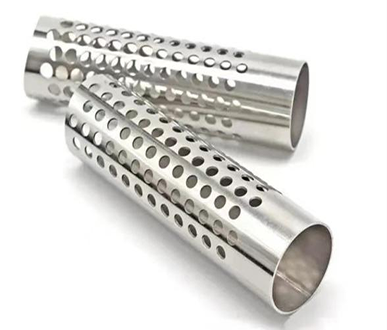

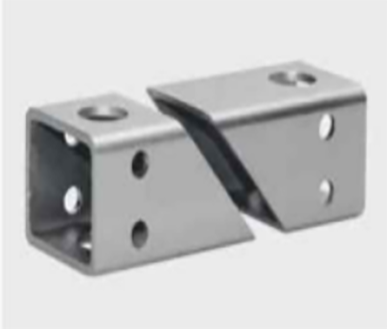

    Samples

    • 图片6
    • 图片7
    • 图片8
    • 图片9

    Structures

    • 图片11

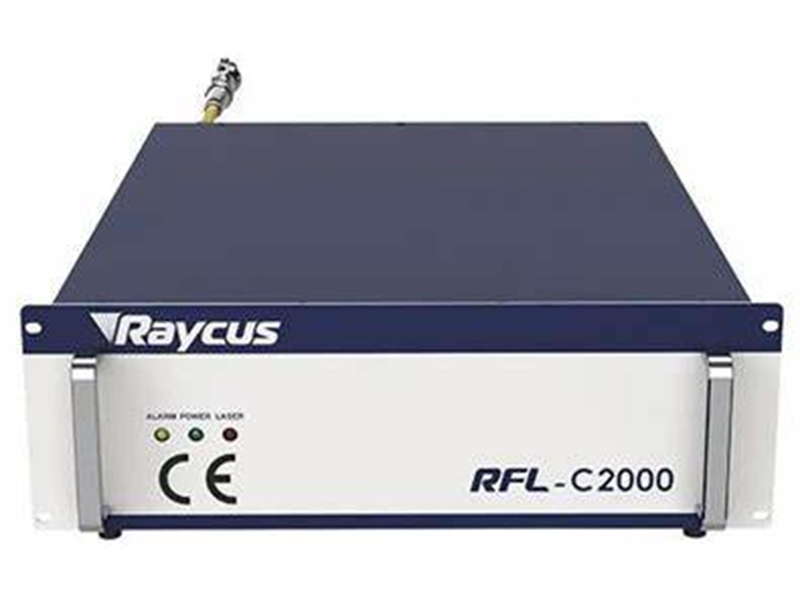

      1.Laser source: Max/Raycus

    • B438654C-CE30-4568-9681-7744D339CA56

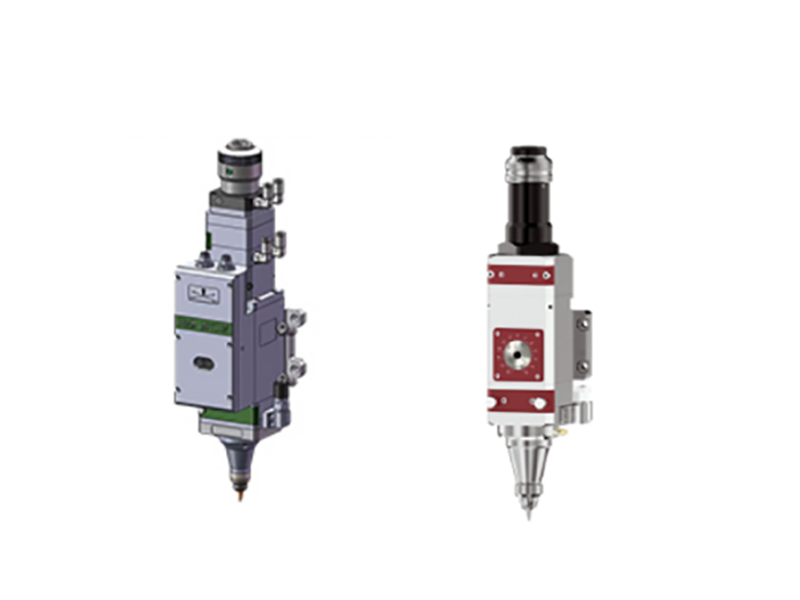

      2.Laser cutting head: RayTools / Ospri

    • 图片14

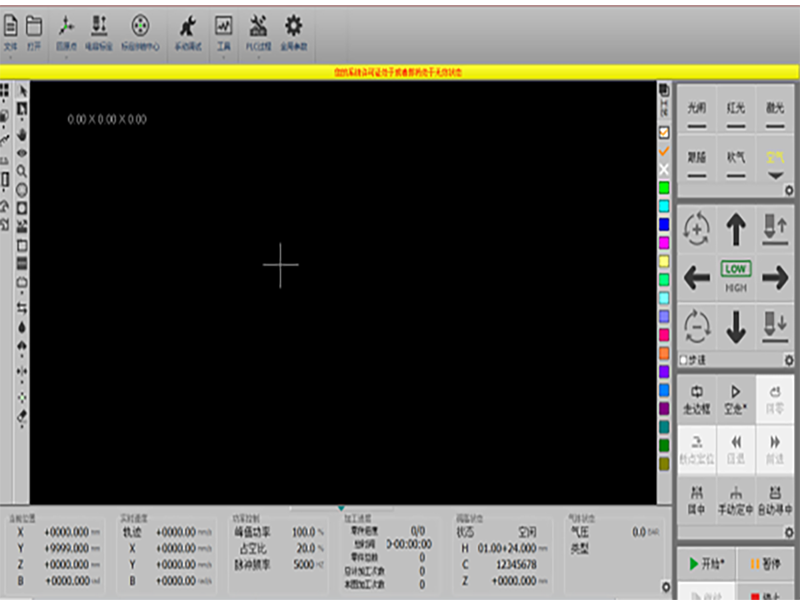

      3.Operating system: Bochu FSCUT3000

    • 图片16

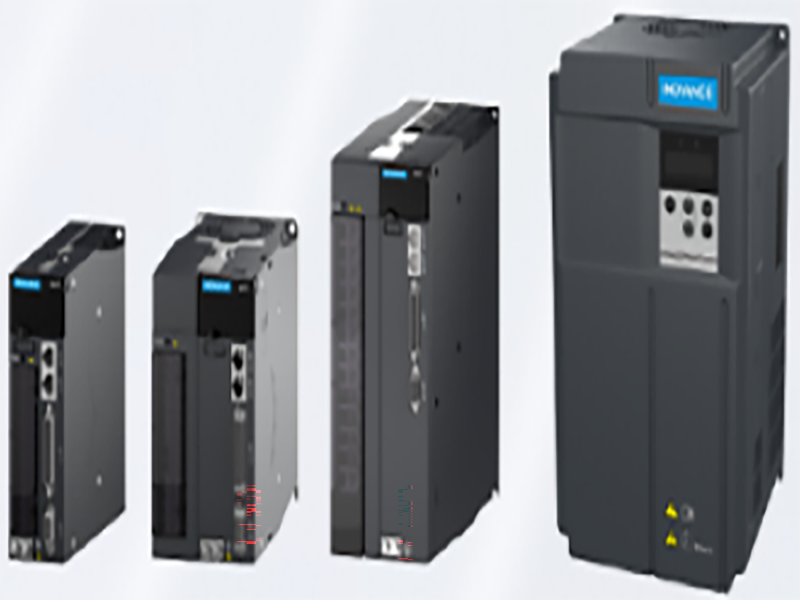

      4.Servo motors: Huichuan/Delta

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G90K semi-auto beveling Laser Tube Cutting Machine Equipment  parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    Ospri/ Raytools

    Water cooling unit

    Hanli

    Clamping plate

    Changzhou Beut

    Servo motor

    Huichuan/Delta

    Guide rail slider

    Taiwan TBI

    Processing range of pipe materials

    10-90MM

    Configuration of the material shelves

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimum cutting length

    1mm

    Loading length

    Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.6G

    Voltage

    380V/50Hz/60Hz

    Total weight of equipment

    About 2.5 kg

    Equipment dimension

    Length9300*width 1900*height1950mm
