Laser Tube Cutting Machine Equipment

G90K semi-automatic Loading

China QianGang Laser is a highly innovative source manufacturers. G90K semi-automatic inclined laser pipe cutting machine equipment, high efficiency, high quality, high reliability, to bring users high value reports, can be connected to automated production lines to help maximize production efficiency.

    Contact us
    product details

    Product Detail

    The G90k semi-automatic bevelled laser tube cutting machine is designed for cutting a variety of 45 degree tubes with a laser power range of 1500 W to 3000 W. In order to maintain stability, increase load carrying capacity and enhance impact resistance, the automatic loading and unloading platform improves productivity and reduces labor costs. The laser cutting range is about 1500to3000.
    main

    Features

    1. The acceleration reaches 1.6G, and the efficiency is 5-6 times of average pipe cutting machine；
    2.The standard height adjuster can easy handle the cutting deformation of pipes：
    3.The head and tail materials are automatically separated from the fnished products to reduce the manual sorting process：
    4.Exclusive customized operating system，standard nesting software and flying cutting function.

    Application

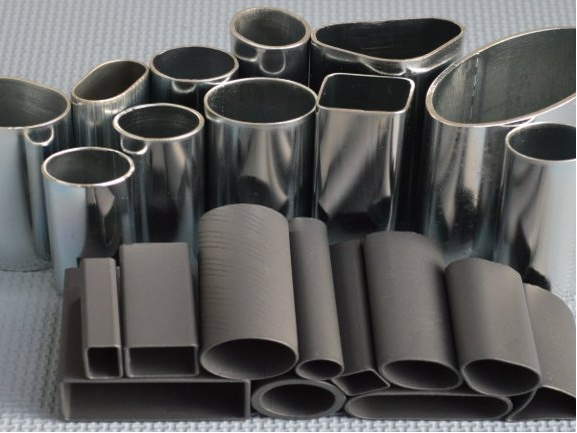

    The G90K semi-automatic inclined laser pipe cutting machine can process metal pipes in various fields such as hardware accessories, hardware furniture, sanitary ware, medical equipment, sports equipment, automobile production, building decoration, electrical equipment, elevator equipment and so on.
    • 1
    • 2
    • 3
    • 4

    Parameters

    Model

    G90K

    Laser Power (W）

    1500/2000/3000

    Cutting range (MM)

    Circumference:10-90

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6500

    Machine size (MM)

    L*W*H:3578*1700*1950

    Body + Rack size (MM)

    Semi-automatic(L*W*H):9300*1700*1950

    Machine weight（kg）

    ≈2.5

    Acceleration(G)

    ≈1.5

    Tailings  length(MM)

    ≈40

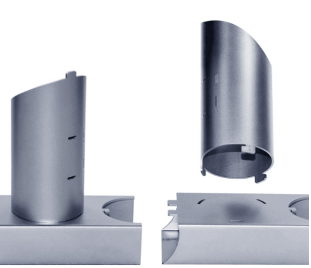

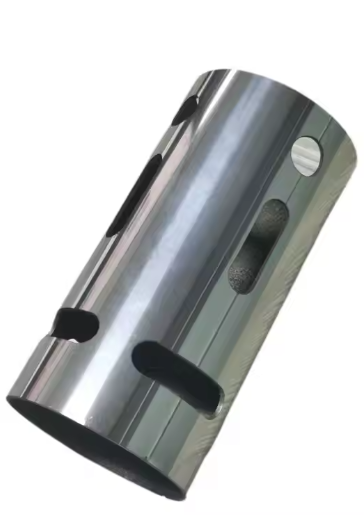

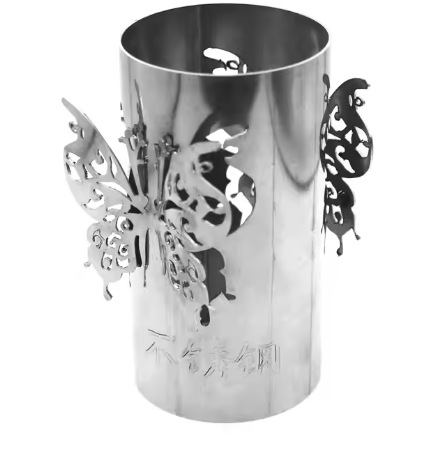

    Samples

    • image3
    • 图片5
    • 7
    • 8

    Structures

    • 图片91 (9)

      1.Laser source: Max/Raycus

    • PixPin_2025-05-15_09-21-47


      2.Laser cutting head:  Ospri / Raycus / Bochu

    • product-description13

      3.Operating system: Bochu FSCUT3000

    • 1 (14)1 (15)

      4.Servo motors: Huichuan/Delta

    tp12

    5. Water chiller: Hanli

    Details

    G90K semi-auto beveling Laser Tube Cutting Machine Equipment  parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    Ospri/ Raytools

    Water cooling unit

    Hanli

    Clamping plate

    Changzhou Beut

    Servo motor

    Huichuan/Delta

    Guide rail slider

    Taiwan TBI

    Processing range of pipe materials

    10-90MM

    Configuration of the material shelves

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimum cutting length

    1mm

    Loading length

    Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.5G

    Voltage

    380V/50Hz/60Hz

    Total weight of equipment

    About 2.5 kg

    Equipment dimension

    Length9300*width 1700*height1950mm
