High-speed 3D Laser Tube Cutting Machine Equipment

G170D semi-automatic

China QianGang is a highly innovative laser equipment factory. G170D flat push semi-automatic laser pipe cutting machine equipment, high efficiency, high quality, high reliability, bring high value to users, can be connected to automatic production line production, help improve production efficiency.

    Contact us
    product details

    Product Detail

    We are a professional manufacturer of laser cutting machine. The main products are high three-dimensional five-axis multi-functional laser cutting machine, automatic laser cutting machine, Angle laser cutting machine and so on. We can customize laser equipment according to your requirements. Our G170D flat push semi-automatic laser pipe cutting machine has been widely used in door and window guardrail, stair handrail, medical equipment and other industries.

    Product introduction

    G170D flat push semi-automatic laser pipe cutting machine laser power range of 1500 watts ~ 6000 watts, suitable for cutting a variety of small and medium-sized pipe. The reinforced chuck reduces the over travel of the front chuck and saves a lot of waste.
    封面图

    Features

    1.Automatic loading rack, saving time and labor, simple structure and easy operation
    2.The efficiency is 5-6 times that of ordinary pipe cutting machine.
    3.Tail material blind area is small, save materials, reduce the post-process
    4.The equipment cut the remaining tail short, greatly saving the material loss
    5.Follow cutting: Standard integrated height adjuster, easy for deformed pipe

    Application

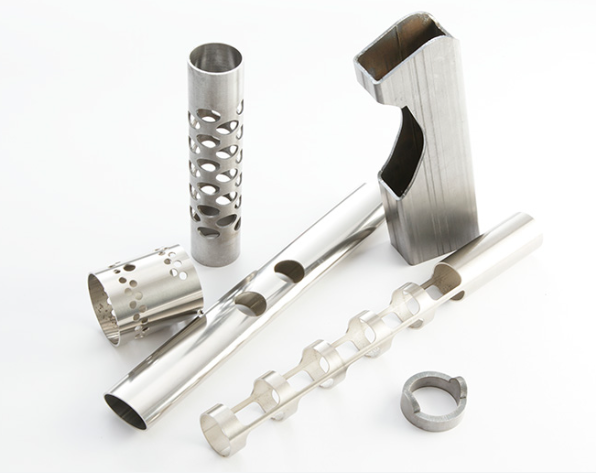

    • image2

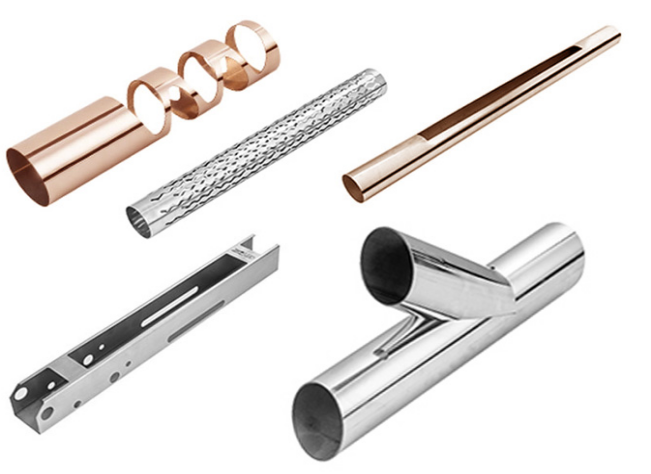

    • image3
    • image4
    • image5

    Parameters

    Model

    G170D

    Laser Power (W）

    1500/2000/3000/6000

    Cutting range (MM)

    Circumference:10-170

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Body + Rack size (MM)

    Manual(L*W*H):8856 * 1876 * 2172

    Machine weight（kg）

    ≈2.5

    Acceleration(G)

    ≈1.3

    Tailings length(MM)

    ≈80

    Samples

    • image6

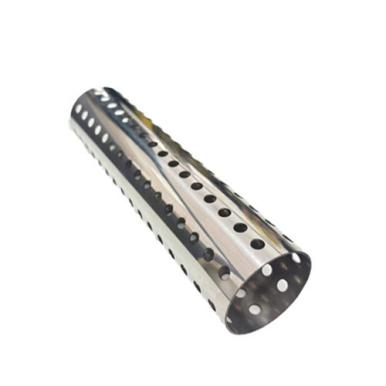

    • image7
    • image8
    • image9

    Structures

    • image10

      1.Laser source: Reci

    • PixPin_2025-05-15_09-21-47

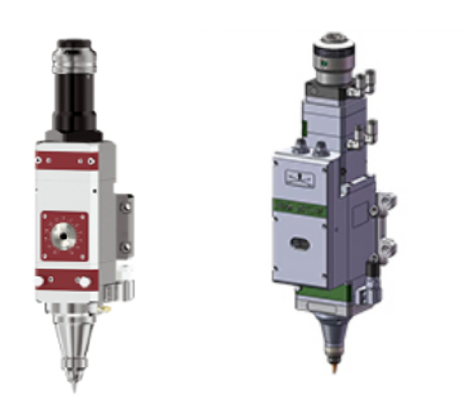

      2.Laser cutting head: Ospri/ RayTools

    • product-description13

      3.Operating system: Bochu FSCUT3000

    • 图片13

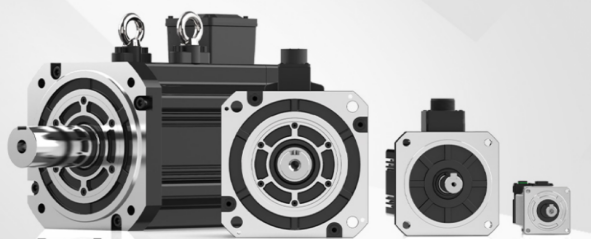

      4.Servo motors: Huichuan/Delta

    tp12

    6.HANLI Water Chiller

    Details

    G170D Laser Tube Cutting Machine Equipment  parameter

    Parameter

    Supplier

    Laser source

    Reci

    Laser head

    Raycus /Ospri

    Water cooling unit

    Hanli

    Chuck

    Beut Brand

    Servo motor

    Hechuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-170MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.3G

    Voltage

    380V/50Hz

    Total weight of equipment

    About 2.5 tons

    Equipment dimension

    Length8856*width1876*height2172mm
