Round Tube Laser Tube Cutting Machine Equipment

G120C Semi-auto

One of the most inventive laser equipment factories is China QIANGANG. High efficiency, high quality, and high reliability are features of the Model G120C Semi-auto Round Tube Laser Tube Cutting Machine Equipment. It can be connected to automated production lines and helps to maximize production efficiency. It also provides users with high-value reports.

    Contact us
    product details

    Product Detail

    We are the producer, concentrating in producing laser pipe cutting machines. mostly produce high-efficiency three-dimensional, five-axis multifunctional laser pipe cutting machines, fully automated laser pipe cutting machines, and precision laser pipe cutting machines for extremely small tubes. The laser machines can be modified to meet your requirements. Our Model G120C Manual Fiber Laser Tube Cutting Machine Equipment is frequently used in industry such as electronic communications, medical devices, and industrial production for pipe processing.

    Product introduction

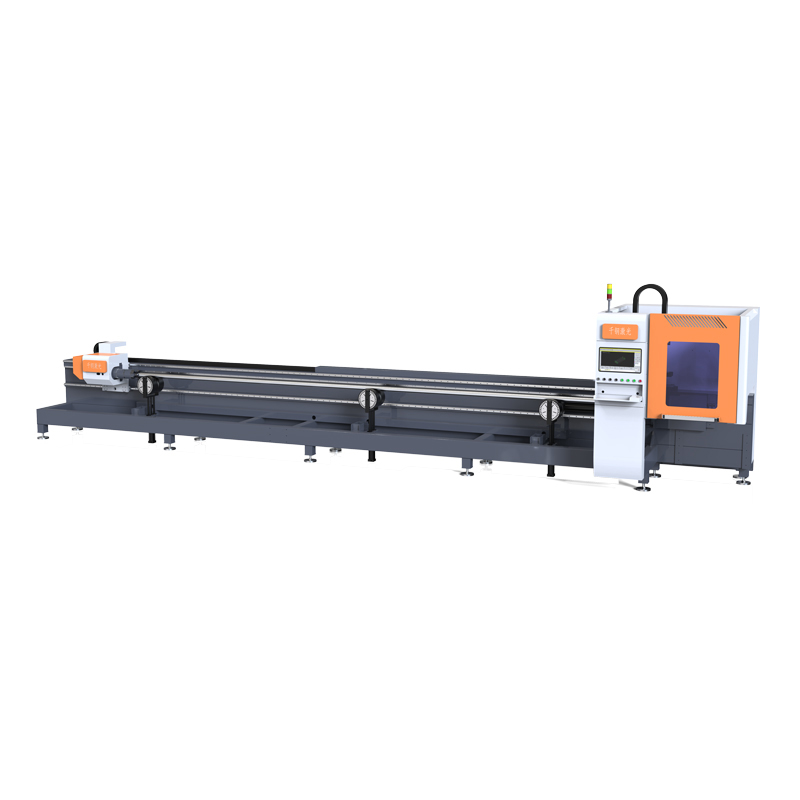

    With a laser power ranging from 1500w to 6000w, the Model G120C Semi Automatic Precision Automatic Laser Tube Cutting Machine is made to cut a range of small and medium-sized pipes. It features a side-mounted machine bed for stability, greater loading capacity, and enhanced shock resistance. Although it uses a lot of material, reverse two-chuck cutting yields short tailings of about 40 mm. Multiple cutting stations, a two-chuck design, and a servo support mechanism provide accurate processing. Productivity is increased and personnel costs are decreased with an automated loading and unloading platform. The laser's cutting range is around 1500–6000.
    product-description1

    Features

    1. Fast super stability; 2500–3500 segments per hour is the standard specification.
    2. Adopt an industry-standard top flow arrangement that is cost-effective and appropriate for precision machines with big and small tubes.
    3. The pipe length can be directly modified to achieve fool-like operation, and double-chuck control offers greater flexibility.
    4. Different cutting kinds exist, including elliptical, circular, and square pipes.
    5. Effective and quick.

    Application

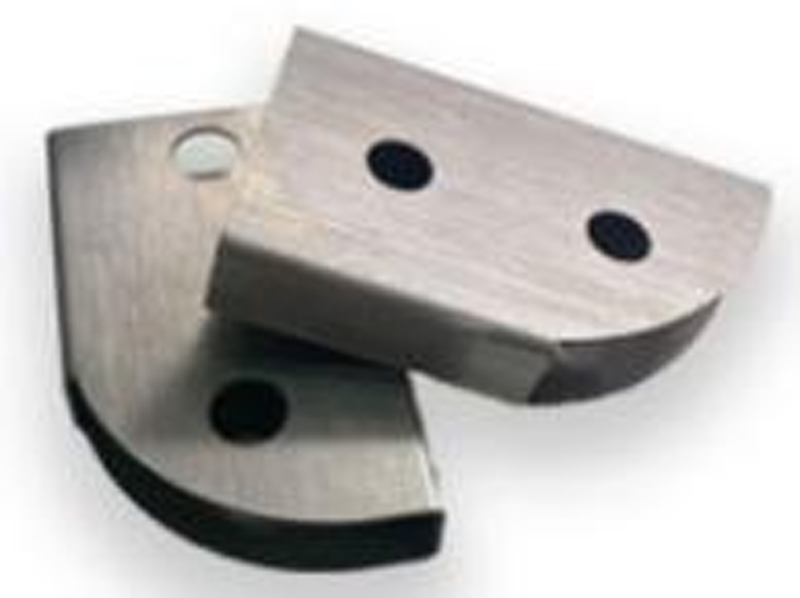

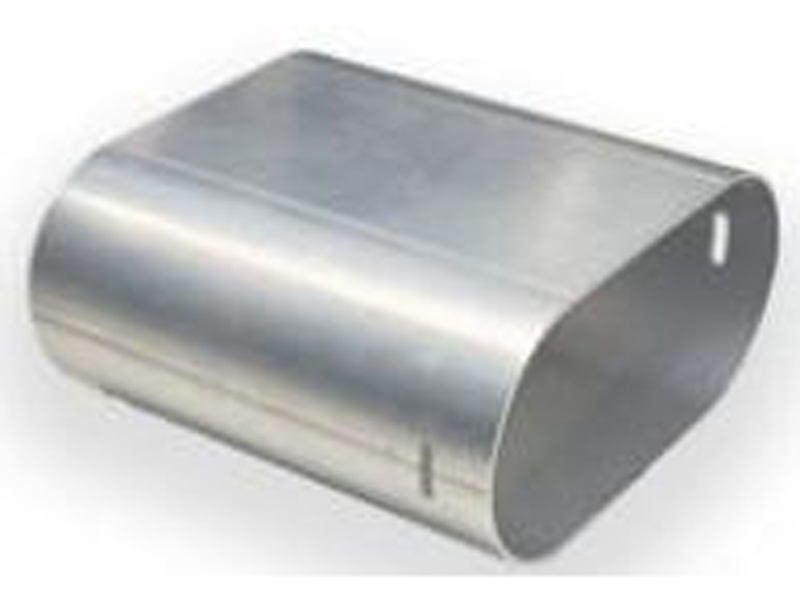

    This  G120C Semi-auto Round Tube Laser Tube Cutting Machine Equipment can effectively cut various types of small and medium-sized pipes in 3D.
    • product-description2
    • product-description3
    • product-description4

    Parameters

    Model

    G120C

    Laser Power (W）

    1500-6000

    Cutting range (MM)

    Circumference:10-120

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H:8874*1720*2175

    Body + Rack size (MM)

    Semi-automatic(L*W*H):8856*2170*2175

    Machine weight（T）

    ≈3.5

    Acceleration(G)

    ≈1.6

    Tailings  length(MM)

    ≈40

    Samples

    • news05
    • news06
    • product-description8
    • product-description9

    Structures

    • product-description5

      1. Laser source: Max/Raycus

    • product-description11

      2. Laser cutting head: Ray Tools / Ospri

    • Structures2

      3. Operating system: Bochu FSCUT3000

    • Structures3

      4. Servo motor: Huichuan

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G120C Semi-auto Round Tube Laser Tube Cutting Machine Equipment  parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    RayTools

    Water cooling unit

    Hanli

    Chuck

    Changzhou Beut

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-120MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.6G

    Voltage

    380V/50Hz

    Total weight of equipment

    About 3.5 tons

    Equipment dimension

    Length8856*width 2170*height2175mm
