Round Tube Laser Tube Cutting Machine Equipment

G120C Semi-auto

China QIANGANG is a highly innovative laser equipment factory. Model G120C Semi-auto Round Tube Laser Tube Cutting Machine Equipment,high efficiency, high quality, high reliability, bring users high value report, can be connected with automated production line production, help maximize production efficiency.

    Contact us
    product details

    Product Detail

    We are the manufacturer with the most expertise in creating laser pipe cutting machines. primarily run items like high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines, completely automatic laser pipe cutting machines, and precision laser pipe cutting machines for incredibly small tubes. We are able to modify the laser machines to meet your needs. Pipe processing in industries like industrial production, electronic communications, and medical devices is a common application for our G120C Semi-auto Round Tube Laser Tube Cutting Machine Equipment.

    Product introduction

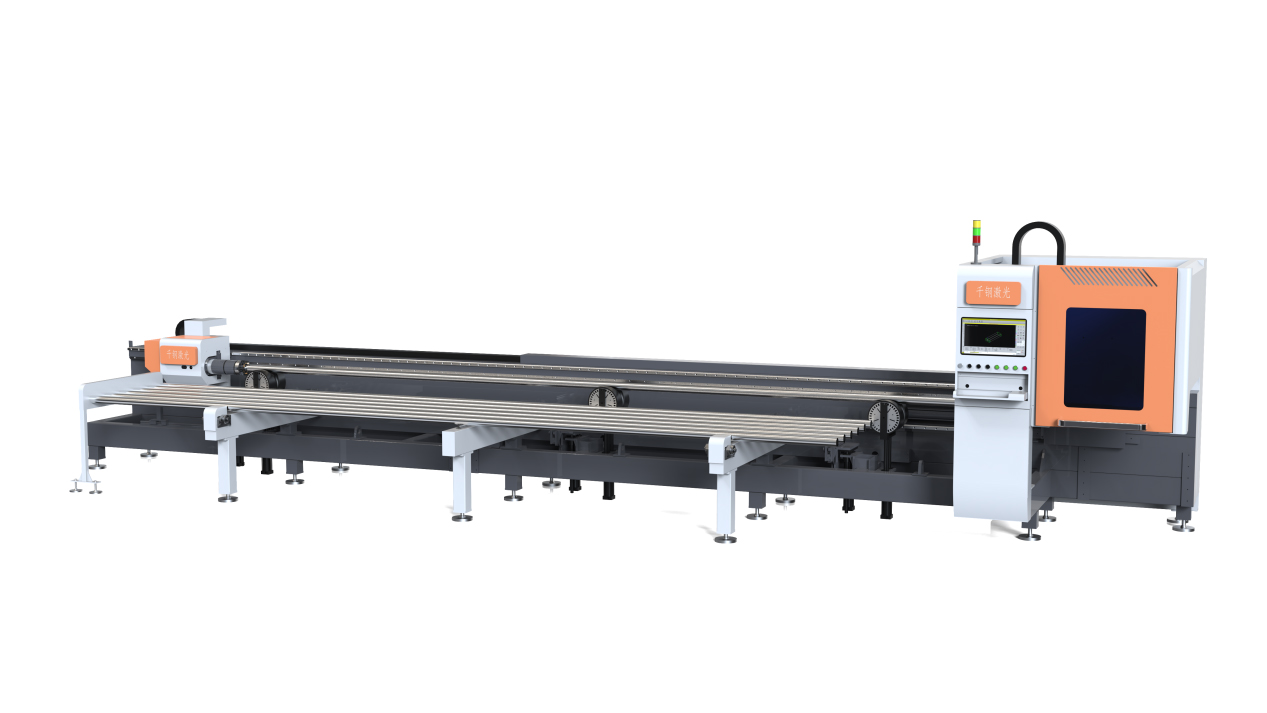

    Designed to cut a variety of small and medium-sized pipes, the Model G120C Semi Automatic Precision Automatic Laser Tube Cutting Machine has a laser power ranging from 1500w to 6000w. For stability, increased loading capacity, and improved shock resistance, it has a machine bed that is attached to the side. Reverse two-chuck cutting produces short tailings of roughly 40 mm while using a lot of material. Accurate processing is guaranteed by a servo support device, multiple cutting stations, and a two-chuck construction. An automated platform for loading and unloading increases productivity and reduces labor expenditures. The laser has a cutting range of around 1500–6000.
    product-description1

    Features

    1. Quick super stability; 2500–3500 segments per hour is the standard criteria.
    2. Use industry-standard top flow arrangement, which is highly cost-effective and appropriate for precision machines with large and tiny tubes.
    3. The pipe length can be directly changed to achieve fool-like operation, and double-chuck control offers greater flexibility.
    4. There are several cutting varieties, including elliptical, circular, and square pipes. I-beams, channel steel, angle steel, and other random pipes.
    5. Timely and efficient.

    Application

    This  G120C Semi-auto Round Tube Laser Tube Cutting Machine Equipment can effectively cut various types of small and medium-sized pipes in 3D.
    • product-description2
    • product-description3
    • product-description4
    • product-description5

    Parameters

    Model

    G120C

    Laser Power (W）

    1500-6000

    Cutting range (MM)

    Circumference:10-120

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H:8874*1720*2175

    Body + Rack size (MM)

    Semi-automatic(L*W*H):8856*2170*2175

    Machine weight（T）

    ≈3.5

    Acceleration(G)

    ≈1.6

    Tailings  length(MM)

    ≈40

    Samples

    • news05
    • news06
    • product-description8
    • product-description9

    Structures

    • product-description3

      1. Laser source: Max/Raycus

    • product-description11

      2. Laser cutting head: Ray Tools / Ospri

    • product-description5

      3. Operating system: Bochu FSCUT3000

    • product-description6

      4. Servo motor: Huichuan

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G120C Semi-auto Round Tube Laser Tube Cutting Machine Equipment  parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    RayTools

    Water cooling unit

    Hanli

    Chuck

    Changzhou Beut

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-120MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.6G

    Voltage

    380V/50Hz

    Total weight of equipment

    About 3.5 tons

    Equipment dimension

    Length8856*width 2170*height2175mm
