Fiber Laser pipe cutting Machine with two chuck and 0 tailing length

G120CL 0 tailing length

China QianGang Company has been continuously deepening its efforts in the production and manufacturing of laser pipe cutting machines, and has occupied an important position in this industry. The G120CL fully automatic zero-tail-loss laser pipe cutting machine launched by it is ingeniously designed. In terms of cutting quality, it has extremely high cutting accuracy, with smooth and flat cutting edges, effectively improving product quality.

    Contact us
    product details

    Product Detail

    We are the original manufacturers of laser pipe cutting equipment. We mainly produce products such as high-efficiency three-dimensional five-axis multi-functional laser pipe cutting machines, fully automatic laser pipe cutting machines, and precision laser pipe cutting machines suitable for ultra-fine pipes. Our laser equipment can meet your needs. For instance, this G120CL high-speed zero-tail-loss fully automatic laser pipe cutting machine (side-mounted) is a popular pipe processing tool in medical equipment, industrial manufacturing and automobiles.

    Product introduction

    The G120CL type fully automatic laser pipe cutting machine is suitable for cutting various medium and small-sized pipes. Its laser power range is from 1500 watts to 3000 watts. To enhance stability, increase loading capacity and improve shock resistance, the machine tool is installed on the side. Due to the high material consumption rate, a zero tail-off design is adopted. Through servo support devices, multiple cutting stations and a double chuck structure, precise processing is ensured.
    1

    Features

    1.The cutting range is wide and the operation is simple. The machine can cut various types of pipes, such as round pipes, square pipes, channel steels and various special-shaped pipes.
    2.Various specifications of cut pieces are available, including elliptical, circular, square, channel steels, angle steels, I-beams and other pipes of various shapes.
    3.Fast and extremely stable, with typical hourly cutting specifications ranging from 2500 to 3500 pieces.
    4.There is no blind area for tailings, which reduces the subsequent processing workload and saves materials: the theoretical tailing cutting depth of this equipment is approximately 0 mm, which significantly reduces material loss.

    Application

    This G120CL high-speed zero-tail material laser pipe cutting machine (side-mounted type) is capable of efficiently cutting various medium and small-sized pipes, such as hardware fittings, hardware furniture, bathroom fittings, medical equipment, sports equipment, automotive manufacturing, architectural decoration, 3C products, elevator equipment, and so on
    • 1 (1)
    • 1 (2)
    • 图片10
    • 1 (4)

    Parameters

    Model

    G120CL

    Laser Power (W）

    1500-3000

    Cutting range (MM)

    Circumference:10-120

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H:8875*1700*1850

    Body + Rack size (MM)

    Full-automatic(L*W*H):8875*3000*1850

    Machine weight（T）

    ≈3.5

    Acceleration(G)

    ≈1.6

    Tailings  length(MM)

    ≈100

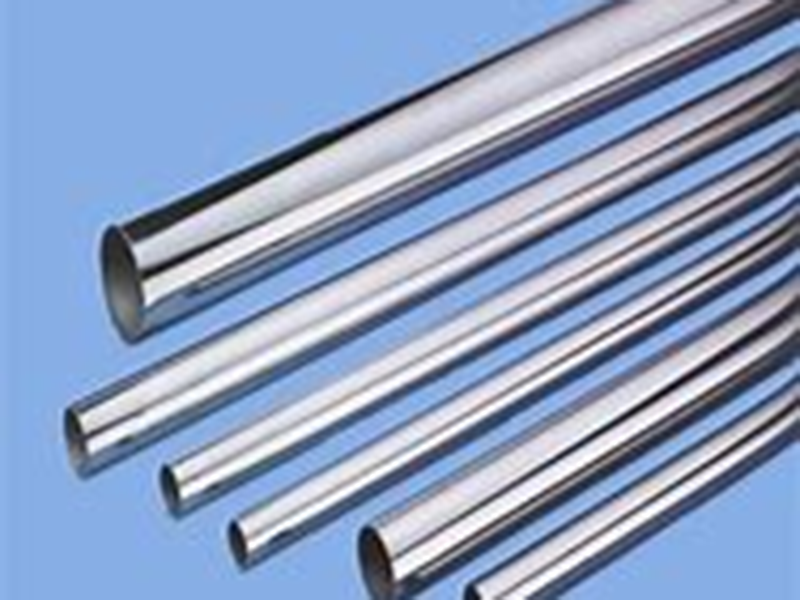

    Samples

    • 图片12
    • 1 (6)
    • 1 (7)

    Structures

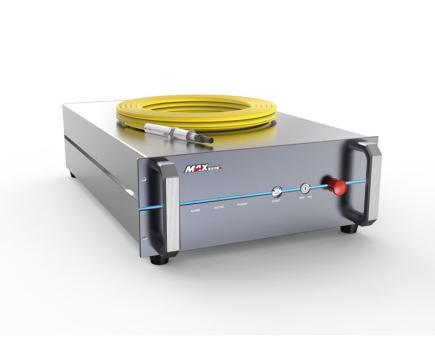

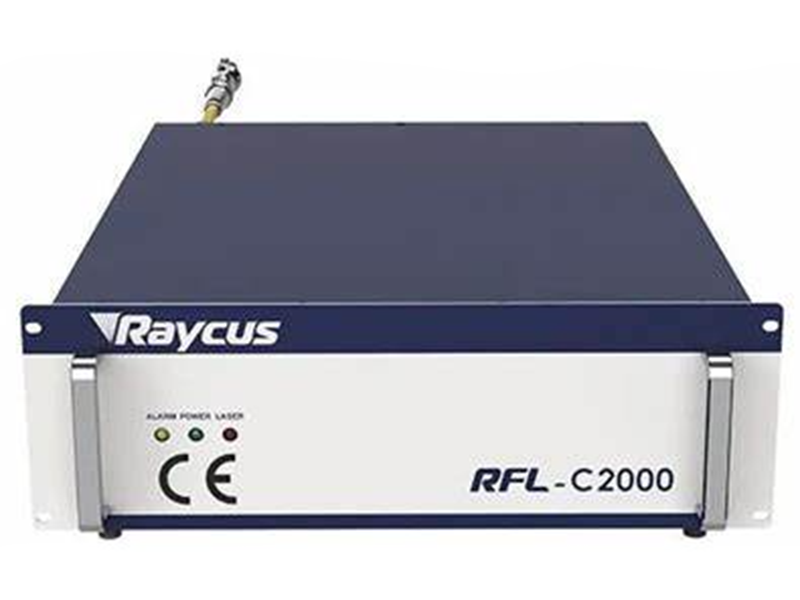

    1.Laser source: Max/Raycus
    2 (1)

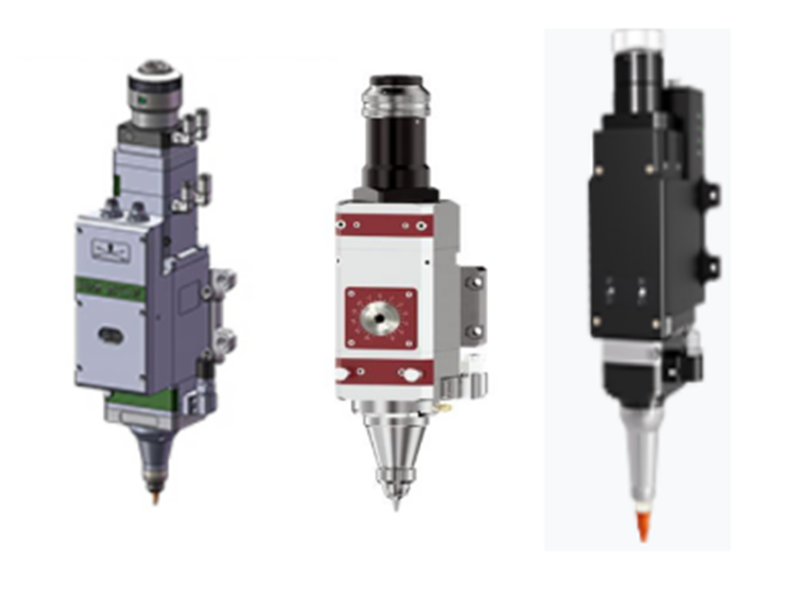

    2.Laser cutting head: ospri/Raycus/Bochu
    screenshot_2025-06-12_15-24-09

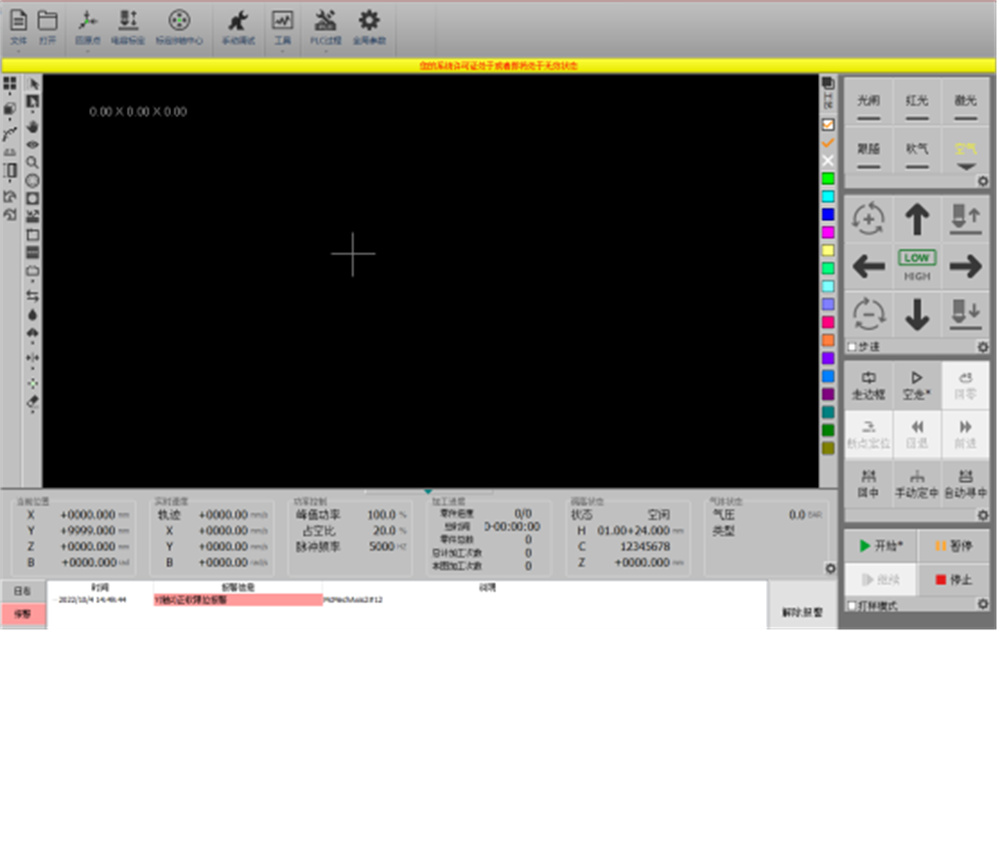

    3.Operating system: Bochu FSCUT3000
    2 (6)
    4.Servo motor: Huichuan
    2 (7)

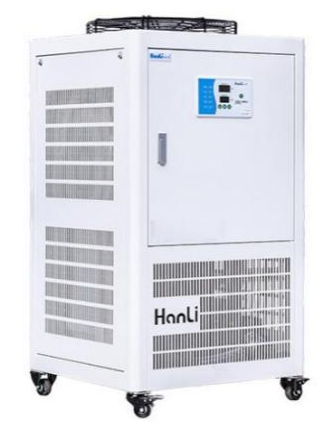

    5. Water chiller: Hanli
    2 (8)

    Details

    G120CL 0 tailing length full-automatic Laser Tube Cutting Machine

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    Ospri / Raycus / Bochu

    Water cooling unit

    Hanli

    Chuck

    Changzhou Beut

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-120MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Semi Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.6G

    Voltage

    380V/50Hz/60Hz

    Total weight of equipment

    About 3.5 tons

    Equipment dimension

    Length8875*width3000*height1850mm
