Fiber Laser pipe cutting Machine with two chuck and 0 tailing length
G120CL 0 tailing length
China QianGang company in the field of laser cutting machine manufacturing continuous intensive cultivation, in the industry already has a very critical position. The G120CL semi-automatic zero-tail loss laser pipe cutting machine created by QianGang Company is designed to be a genius. As far as the cutting quality is concerned, the cutting accuracy of this equipment has reached a very high level, and the cutting edge shows a smooth and flat state, which has a very significant effect on the improvement of product quality.
Taking G120CL high-speed zero tail loss semi-automatic laser pipe cutting machine (side loading) as an example, it has become a right-hand man for pipe processing in many industries such as medical equipment, industrial manufacturing, and automobiles. Whether it's fine tube cutting for medical device components, large-scale tube processing for industrial manufacturing, or the production of highly accurate tubes in the automotive industry, our laser equipment can accurately meet your diverse needs with superior performance.
Product introduction

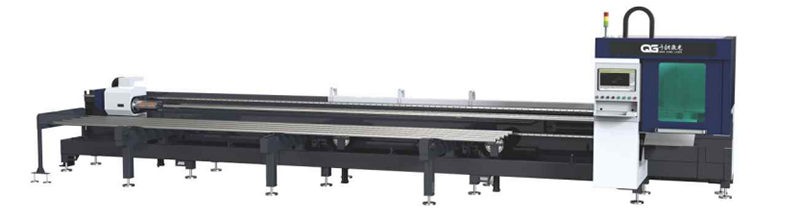

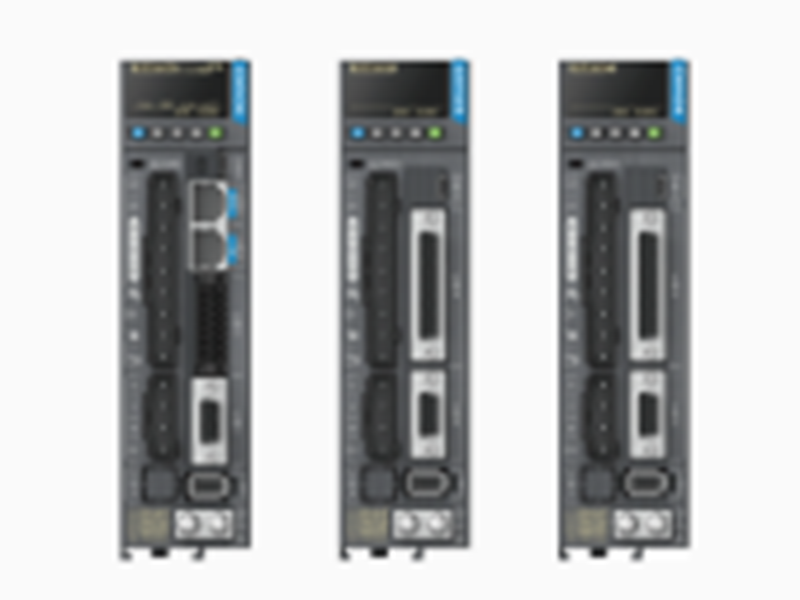

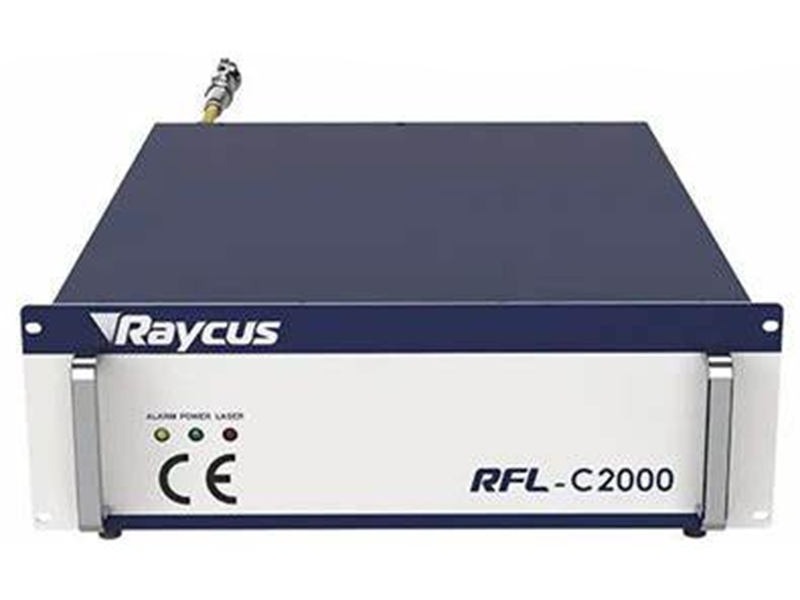

G120CL semi-automatic laser pipe cutting machine is suitable for cutting all kinds of small and medium-sized pipes. Its laser power ranges from 1500 watts to 3000 watts. To enhance stability, increase loading capacity and improve impact resistance, the machine is mounted on the side. Due to the high material consumption rate, zero tail material design is adopted. Machining accuracy is ensured through servo support, multiple cutting stations and double chuck structure.
Features
1.There is no blind spot in the tail, which reduces the subsequent processing effort and saves materials: the theoretical cutting depth of the tail is about 0 mm, which significantly reduces material loss.

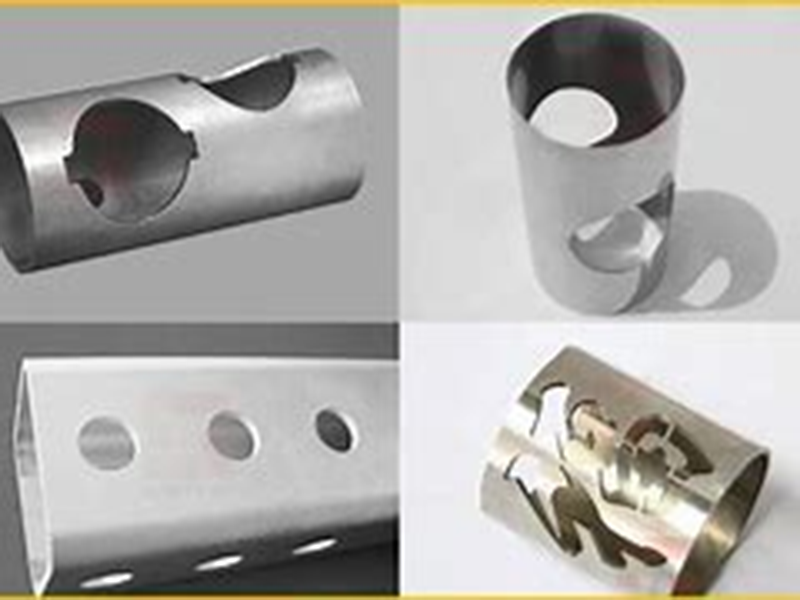

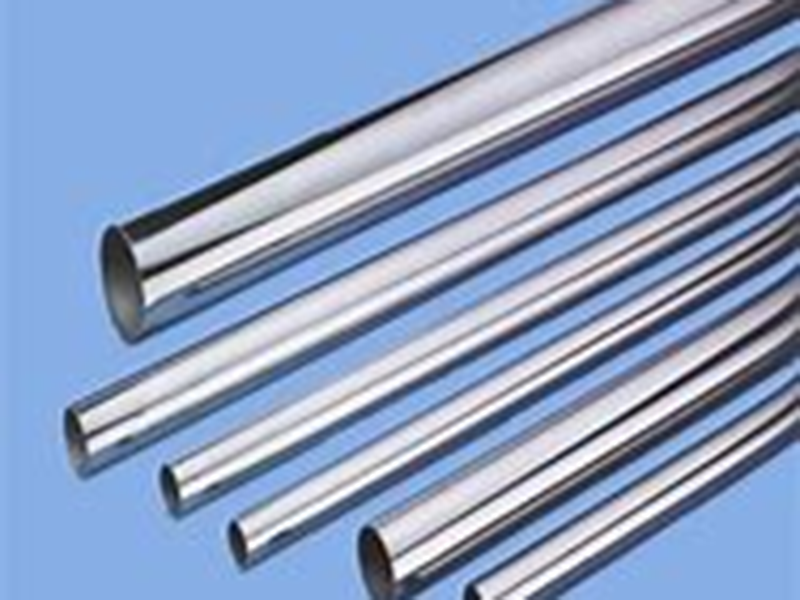

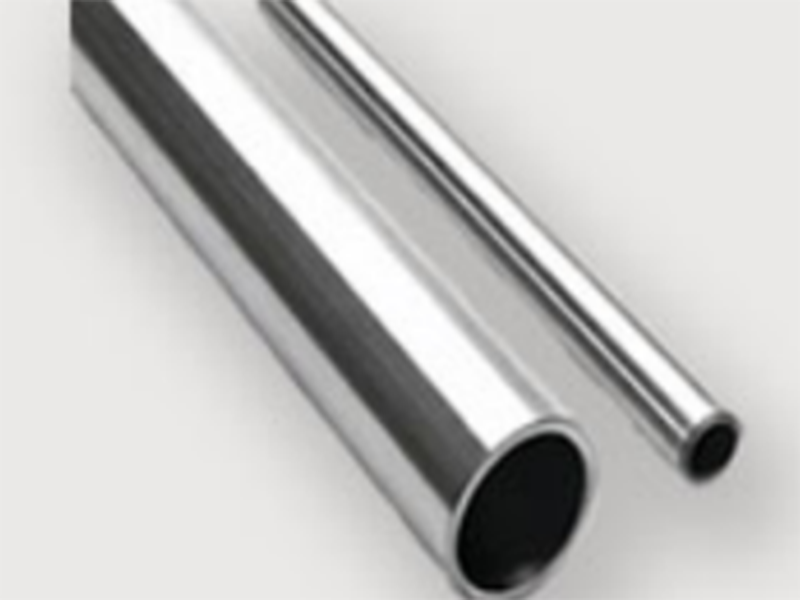

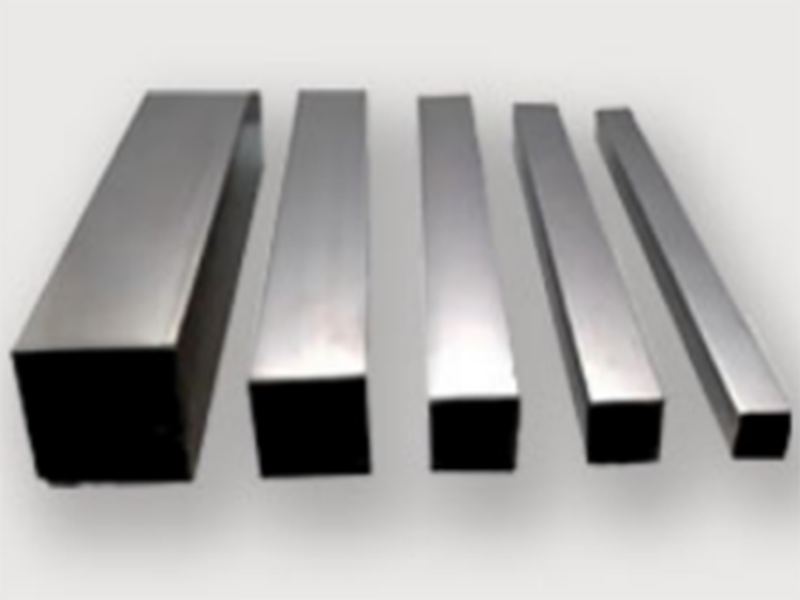

2.Simple and convenient operation, wide cutting range. Various specifications of cutting parts can be selected, including oval, round, square, and channel steel, Angle steel, I-steel and other various shapes of pipe.
3.Cutting speed is fast and extremely stable. The typical number of cuts per hour is between 2,500 and 3,500 pieces.
4.Compared with the standard pipe cutting machine, the acceleration reaches 1.6G and the efficiency is five to six times that of the standard pipe cutting machine
Application

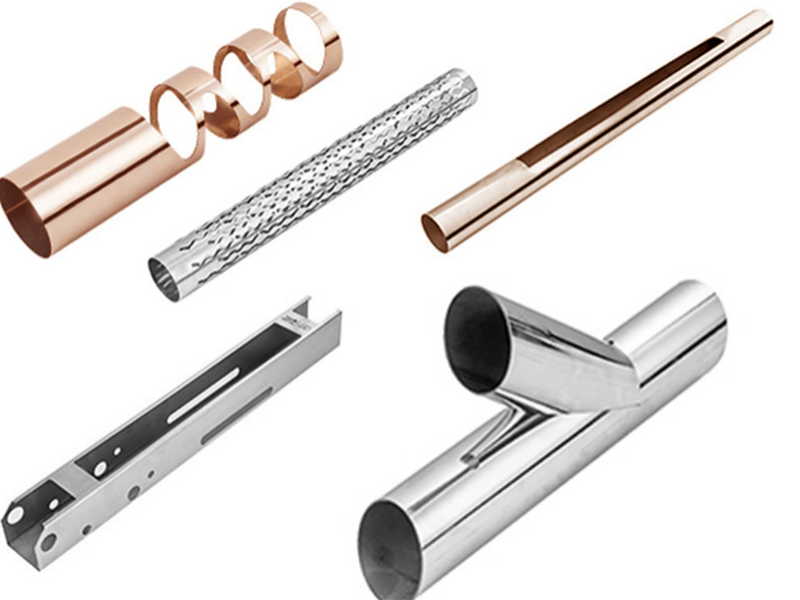

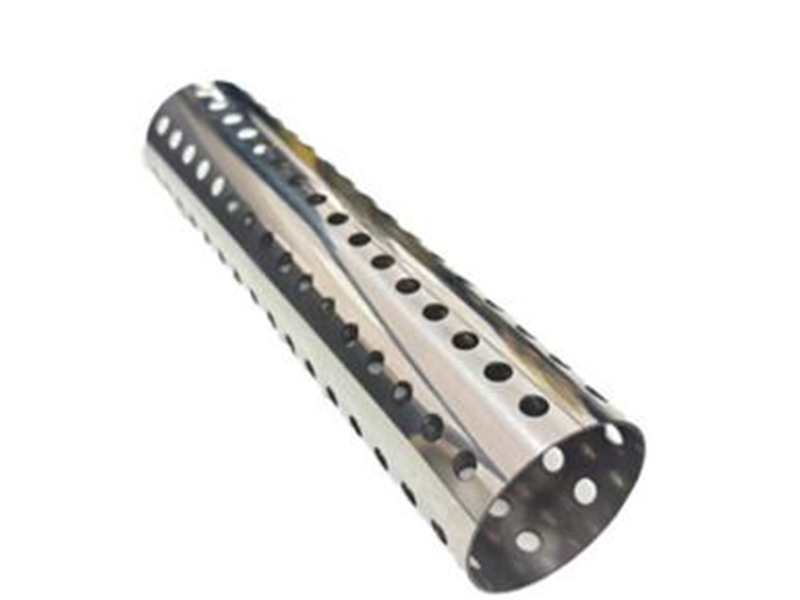

G120CL high-speed zero-tail material laser pipe cutting machine (side mounted), can efficiently cut a variety of small and medium-sized pipe, such as doors and Windows aluminum, hardware furniture, bathroom accessories, medical equipment, sports equipment, automobile manufacturing, building decoration, 3C products, elevator equipment and so on.
