Automatic Feeding Laser Tube Cutting Machine

G120P

High efficiency, high quality, and high dependability are attributes of China QIANGANG. The G120P Fully Automatic Feeding Laser Tube Cutting Machine offers consumers a high value return and can be integrated with automated production lines to optimize production efficiency.A new era of cutting is ushered in by China's first fiber laser cutting equipment.

    Contact us
    product details

    Product Detail

    Our company specializes in manufacturing laser pipe cutting machines and is the source manufacturer. primarily run items like high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines, precise laser pipe cutting machines for incredibly small tubes, and completely automatic laser pipe cutting machines. Depending on your needs, we can modify the laser machines. Applications for our G120P Full Automatic Feeding Laser Tube Cutting Machine in pipe processing include electronic communications, medical devices, and industrial manufacture.

    Product introduction

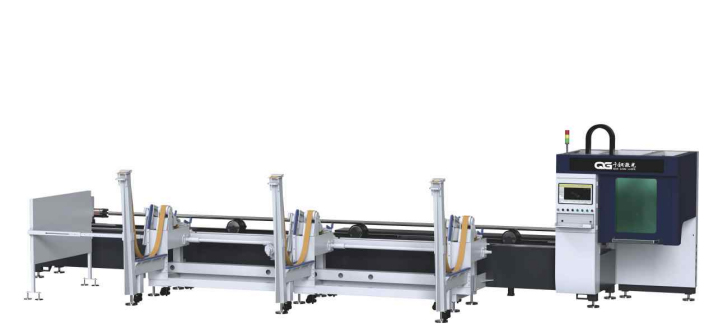

    The G120P Full Automatic Feeding Laser Tube Cutting Machine is designed to cut a range of small and medium-sized pipes with laser power ranging from 3000w to 6000w. For stability, greater loading capacity, and enhanced shock resistance, it features a machine bed that is fixed to the side. When two-chuck cutting is done in reverse, approximately 40mm short tailings are produced with excellent material usage. A two-chuck structure, double cutting stations, and a servo support system guarantee processing accuracy. Productivity is increased and personnel costs are decreased with an automated loading and unloading platform. able to cut Φ120mm circular tube and bevel 45° (optional). length of a single tube up to 6250 mm.
    product-description1

    Features

    1. Fast super stability; 2500–3500 segments per hour is the standard specification.
    2. Adopt an industry-standard top flow arrangement that is cost-effective and appropriate for precision machines with big and small tubes.
    3. The pipe length can be directly modified to achieve fool-like operation, and double-chuck control offers greater flexibility.
    4. Different cutting kinds exist, including elliptical, circular, and square pipes. arbitrary pipes, such as i-beams, channel steel, and angle steel.
    5. Quick and effective.

    Application

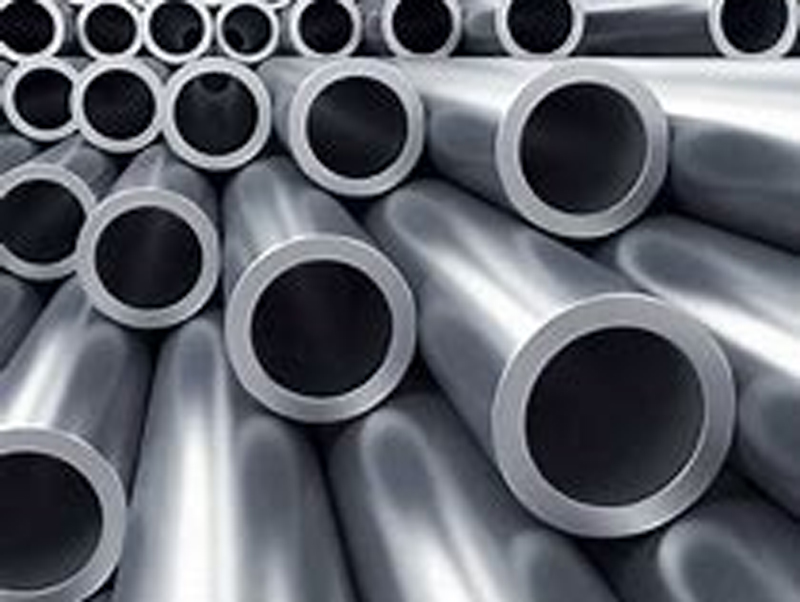

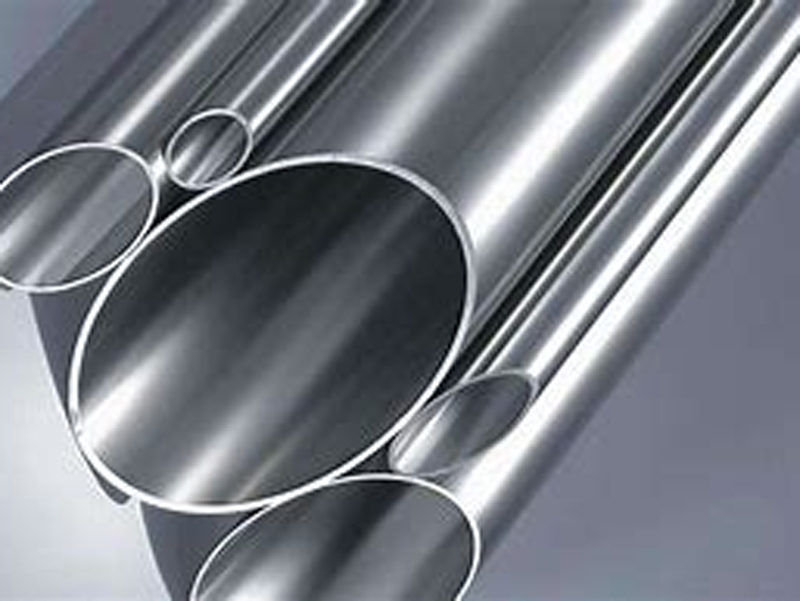

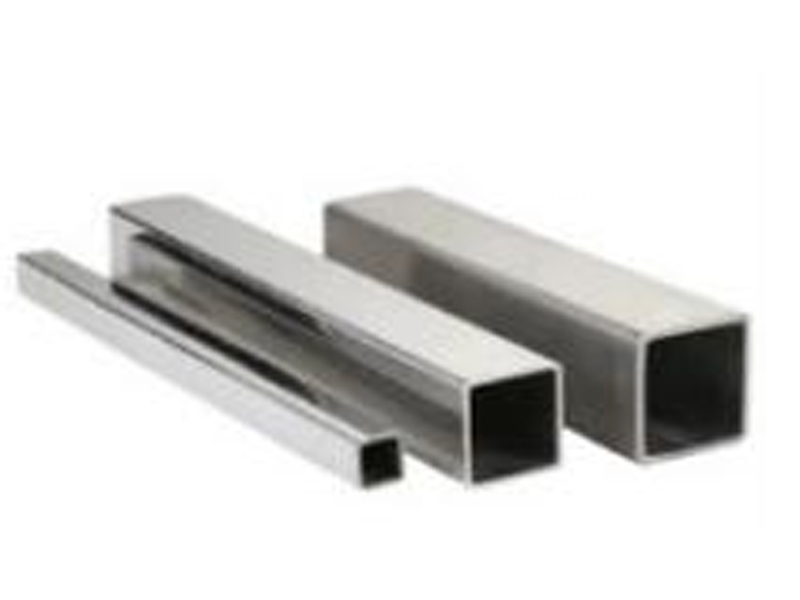

    This G120P Full Automatic Feeding Laser Tube Cutting Machine can effectively cut various types of small and medium-sized pipes in 3D.
    • product-description2
    • product-description3
    • product-description4

    Parameters

    Model

    G120P

    Laser Power (W）

    1500-6000

    Cutting range (MM)

    Circumference:10-120

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H:8856*2886*2172

    Body + Rack size (MM)

    Fully automatic(L*W*H):8856*2886*2172

    Machine weight（T）

    ≈3.5

    Acceleration(G)

    ≈1.6

    Tailings  length(MM)

    ≈60

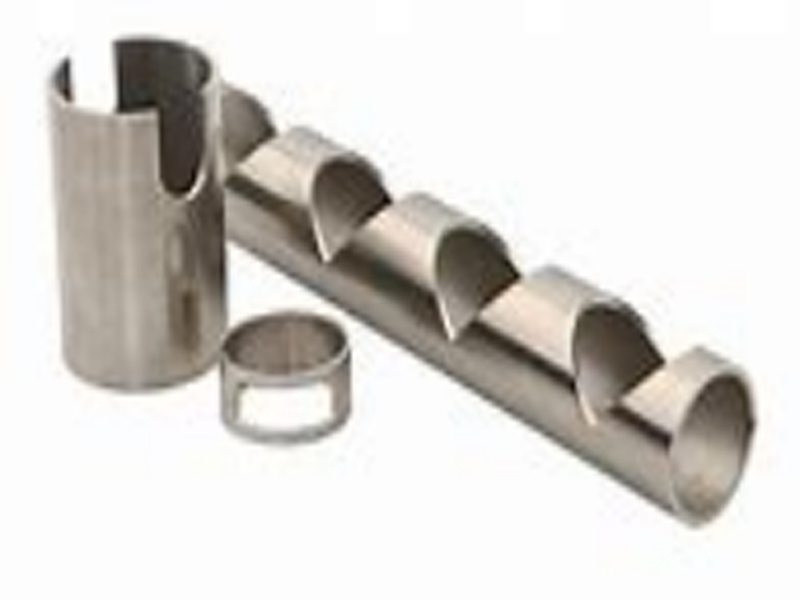

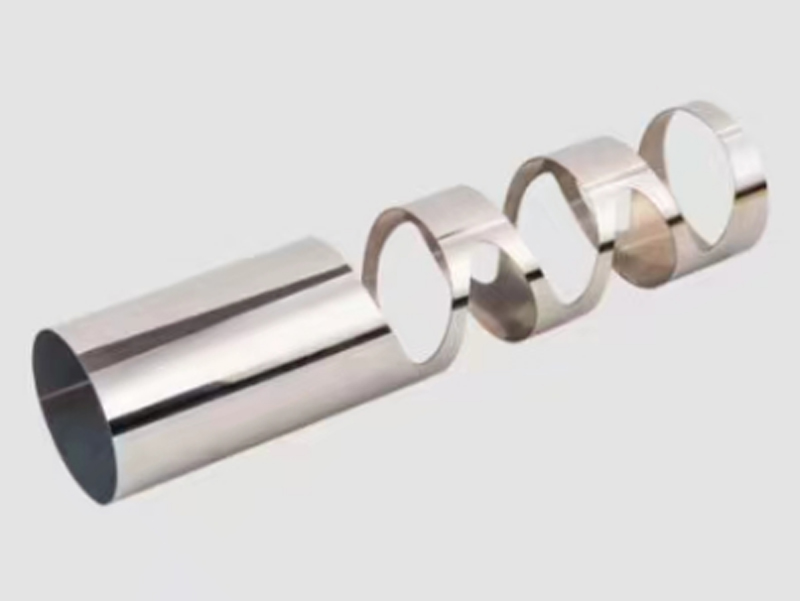

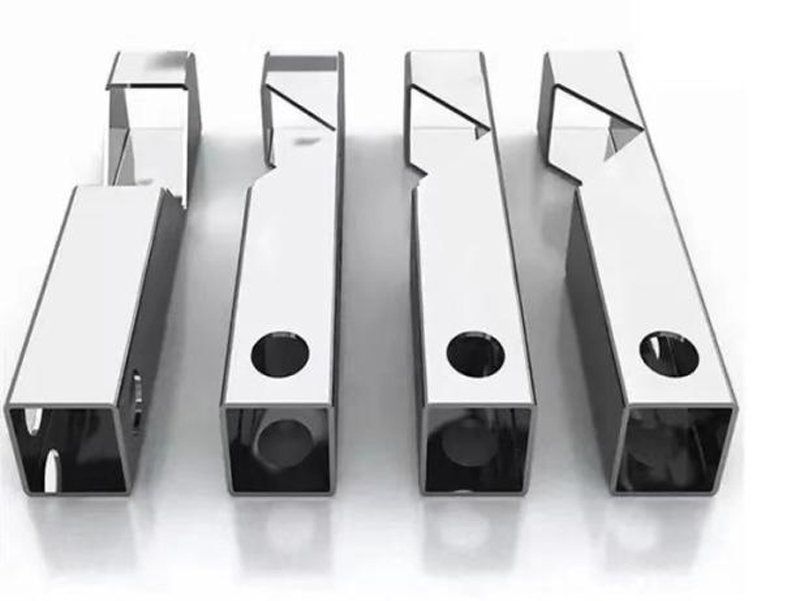

    Samples

    • product-description4
    • product-description7
    • product-description9
    • product-description5

    Structures

    • product-description3

      1. Laser source: Max/Raycus

    • product-description4

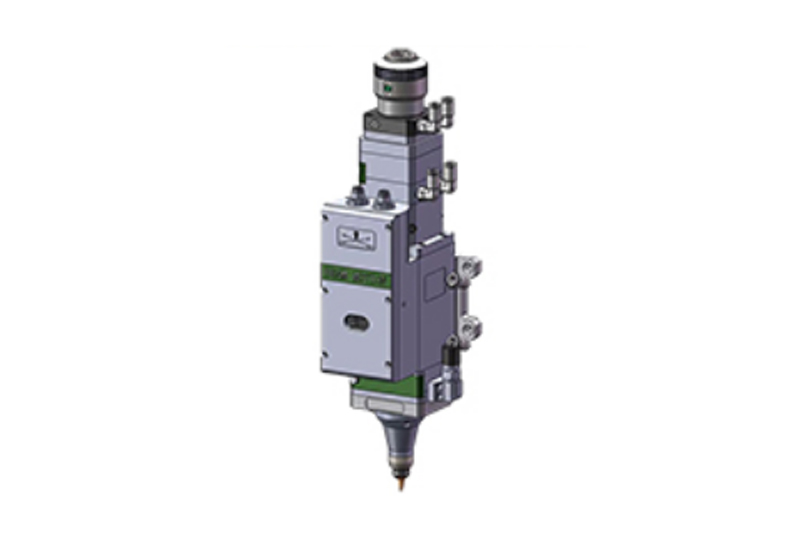

      2. Laser cutting head: Ray Tools

    • product-description5

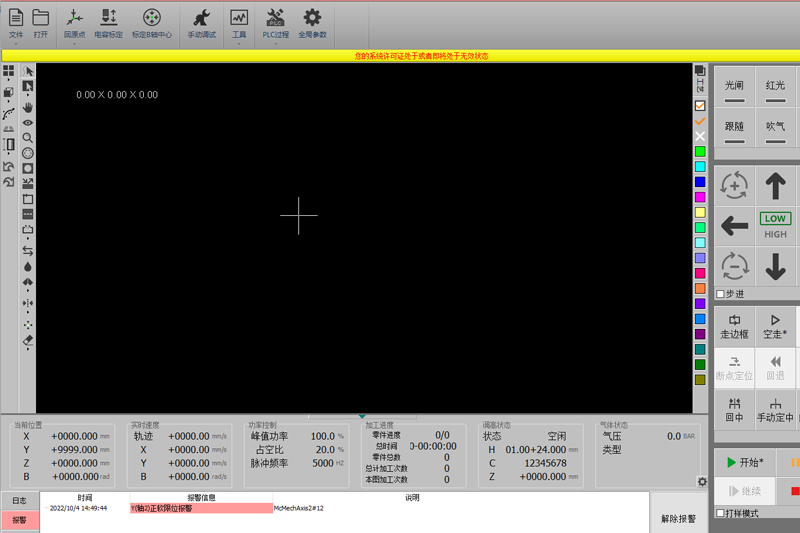

      3. Operating system: Baichu FSCUT3000

    • product-description6

      4. Servo motor: Huichuan

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G120P Full Automatic Feeding Laser Tube Cutting Machine parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    RayTools

    Water cooling unit

    Hanli

    Chuck

    Changzhou Biite

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-120MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

                  Automatic : 3500- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.6G

    Voltage

    380V/50Hz

    Total weight of equipment

    About 3.5 tons

    Equipment dimension

    Length8856*width2886*height2172
